Manifold learning on handwritten digits: Locally Linear Embedding, Isomap…

We illustrate various embedding techniques on the digits dataset.

# Authors: Fabian Pedregosa <fabian.pedregosa@inria.fr>
#          Olivier Grisel <olivier.grisel@ensta.org>
#          Mathieu Blondel <mathieu@mblondel.org>
#          Gael Varoquaux
#          Guillaume Lemaitre <g.lemaitre58@gmail.com>
# License: BSD 3 clause (C) INRIA 2011

Load digits dataset

We will load the digits dataset and only use six first of the ten available classes.

from sklearn.datasets import load_digits

digits = load_digits(n_class=6)
X, y = digits.data, digits.target
n_samples, n_features = X.shape
n_neighbors = 30

We can plot the first hundred digits from this data set.

import matplotlib.pyplot as plt

fig, axs = plt.subplots(nrows=10, ncols=10, figsize=(6, 6))
for idx, ax in enumerate(axs.ravel()):
    ax.imshow(X[idx].reshape((8, 8)), cmap=plt.cm.binary)
    ax.axis("off")
_ = fig.suptitle("A selection from the 64-dimensional digits dataset", fontsize=16)
A selection from the 64-dimensional digits dataset

Helper function to plot embedding

Below, we will use different techniques to embed the digits dataset. We will plot the projection of the original data onto each embedding. It will allow us to check whether or digits are grouped together in the embedding space, or scattered across it.

import numpy as np
from matplotlib import offsetbox
from sklearn.preprocessing import MinMaxScaler


def plot_embedding(X, title, ax):
    X = MinMaxScaler().fit_transform(X)

    shown_images = np.array([[1.0, 1.0]])  # just something big
    for i in range(X.shape[0]):
        # plot every digit on the embedding
        ax.text(
            X[i, 0],
            X[i, 1],
            str(y[i]),
            color=plt.cm.Dark2(y[i]),
            fontdict={"weight": "bold", "size": 9},
        )

        # show an annotation box for a group of digits
        dist = np.sum((X[i] - shown_images) ** 2, 1)
        if np.min(dist) < 4e-3:
            # don't show points that are too close
            continue
        shown_images = np.concatenate([shown_images, [X[i]]], axis=0)
        imagebox = offsetbox.AnnotationBbox(
            offsetbox.OffsetImage(digits.images[i], cmap=plt.cm.gray_r), X[i]
        )
        ax.add_artist(imagebox)

    ax.set_title(title)
    ax.axis("off")

Embedding techniques comparison

Below, we compare different techniques. However, there are a couple of things to note:

  • the RandomTreesEmbedding is not technically a manifold embedding method, as it learn a high-dimensional representation on which we apply a dimensionality reduction method. However, it is often useful to cast a dataset into a representation in which the classes are linearly-separable.

  • the LinearDiscriminantAnalysis and the NeighborhoodComponentsAnalysis, are supervised dimensionality reduction method, i.e. they make use of the provided labels, contrary to other methods.

  • the TSNE is initialized with the embedding that is generated by PCA in this example. It ensures global stability of the embedding, i.e., the embedding does not depend on random initialization.

from sklearn.decomposition import TruncatedSVD
from sklearn.discriminant_analysis import LinearDiscriminantAnalysis
from sklearn.ensemble import RandomTreesEmbedding
from sklearn.manifold import (
    Isomap,
    LocallyLinearEmbedding,
    MDS,
    SpectralEmbedding,
    TSNE,
)
from sklearn.neighbors import NeighborhoodComponentsAnalysis
from sklearn.pipeline import make_pipeline
from sklearn.random_projection import SparseRandomProjection

embeddings = {
    "Random projection embedding": SparseRandomProjection(
        n_components=2, random_state=42
    ),
    "Truncated SVD embedding": TruncatedSVD(n_components=2),
    "Linear Discriminant Analysis embedding": LinearDiscriminantAnalysis(
        n_components=2
    ),
    "Isomap embedding": Isomap(n_neighbors=n_neighbors, n_components=2),
    "Standard LLE embedding": LocallyLinearEmbedding(
        n_neighbors=n_neighbors, n_components=2, method="standard"
    ),
    "Modified LLE embedding": LocallyLinearEmbedding(
        n_neighbors=n_neighbors, n_components=2, method="modified"
    ),
    "Hessian LLE embedding": LocallyLinearEmbedding(
        n_neighbors=n_neighbors, n_components=2, method="hessian"
    ),
    "LTSA LLE embedding": LocallyLinearEmbedding(
        n_neighbors=n_neighbors, n_components=2, method="ltsa"
    ),
    "MDS embedding": MDS(n_components=2, n_init=1, max_iter=100),
    "Random Trees embedding": make_pipeline(
        RandomTreesEmbedding(n_estimators=200, max_depth=5, random_state=0),
        TruncatedSVD(n_components=2),
    ),
    "Spectral embedding": SpectralEmbedding(
        n_components=2, random_state=0, eigen_solver="arpack"
    ),
    "t-SNE embeedding": TSNE(
        n_components=2, init="pca", learning_rate="auto", random_state=0
    ),
    "NCA embedding": NeighborhoodComponentsAnalysis(
        n_components=2, init="random", random_state=0
    ),
}

Once we declared all the methodes of interest, we can run and perform the projection of the original data. We will store the projected data as well as the computational time needed to perform each projection.

from time import time

projections, timing = {}, {}
for name, transformer in embeddings.items():
    if name.startswith("Linear Discriminant Analysis"):
        data = X.copy()
        data.flat[:: X.shape[1] + 1] += 0.01  # Make X invertible
    else:
        data = X

    print(f"Computing {name}...")
    start_time = time()
    projections[name] = transformer.fit_transform(data, y)
    timing[name] = time() - start_time

Out:

Computing Random projection embedding...
Computing Truncated SVD embedding...
Computing Linear Discriminant Analysis embedding...
Computing Isomap embedding...
Computing Standard LLE embedding...
Computing Modified LLE embedding...
Computing Hessian LLE embedding...
Computing LTSA LLE embedding...
Computing MDS embedding...
Computing Random Trees embedding...
Computing Spectral embedding...
Computing t-SNE embeedding...
/home/circleci/project/sklearn/manifold/_t_sne.py:982: FutureWarning: The PCA initialization in TSNE will change to have the standard deviation of PC1 equal to 1e-4 in 1.2. This will ensure better convergence.
  warnings.warn(
Computing NCA embedding...

Finally, we can plot the resulting projection given by each method.

from itertools import zip_longest

fig, axs = plt.subplots(nrows=7, ncols=2, figsize=(17, 24))

for name, ax in zip_longest(timing, axs.ravel()):
    if name is None:
        ax.axis("off")
        continue
    title = f"{name} (time {timing[name]:.3f}s)"
    plot_embedding(projections[name], title, ax)

plt.show()

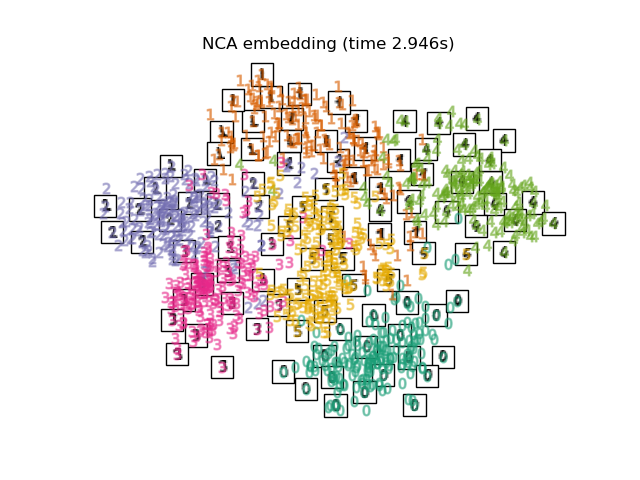

Random projection embedding (time 0.002s), Truncated SVD embedding (time 0.009s), Linear Discriminant Analysis embedding (time 0.014s), Isomap embedding (time 1.469s), Standard LLE embedding (time 0.308s), Modified LLE embedding (time 0.711s), Hessian LLE embedding (time 0.852s), LTSA LLE embedding (time 0.625s), MDS embedding (time 2.662s), Random Trees embedding (time 0.311s), Spectral embedding (time 0.292s), t-SNE embeedding (time 8.729s), NCA embedding (time 2.706s)

Total running time of the script: ( 0 minutes 39.101 seconds)
